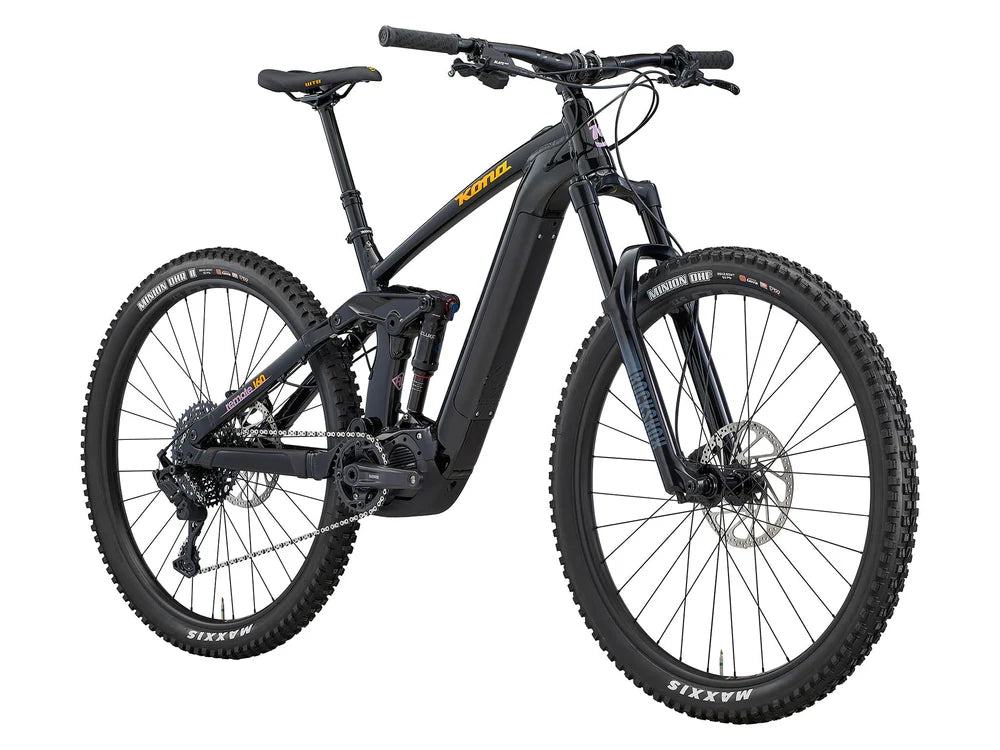

Kona Remote 160
Kona Remote 160
Couldn't load pickup availability

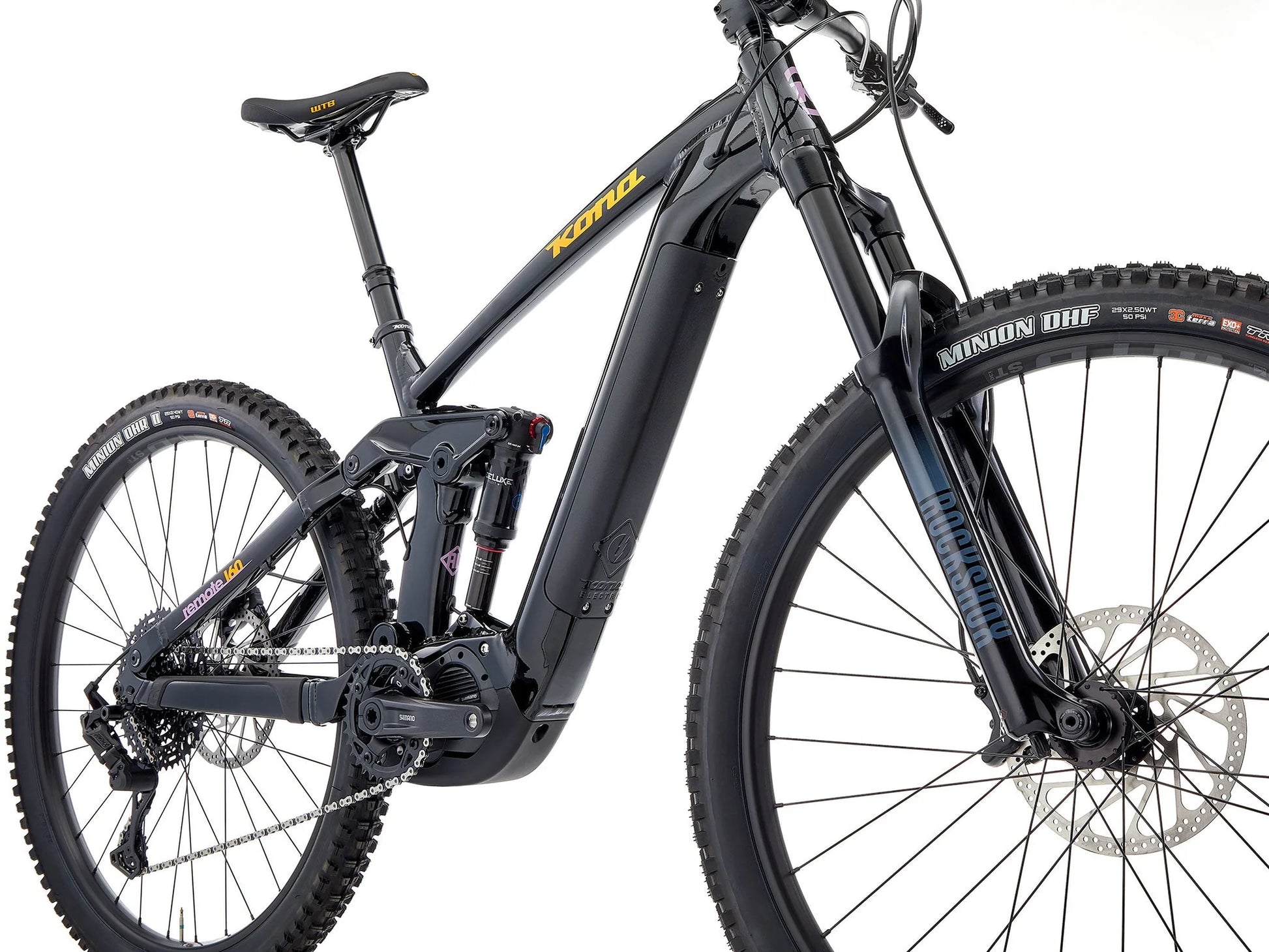

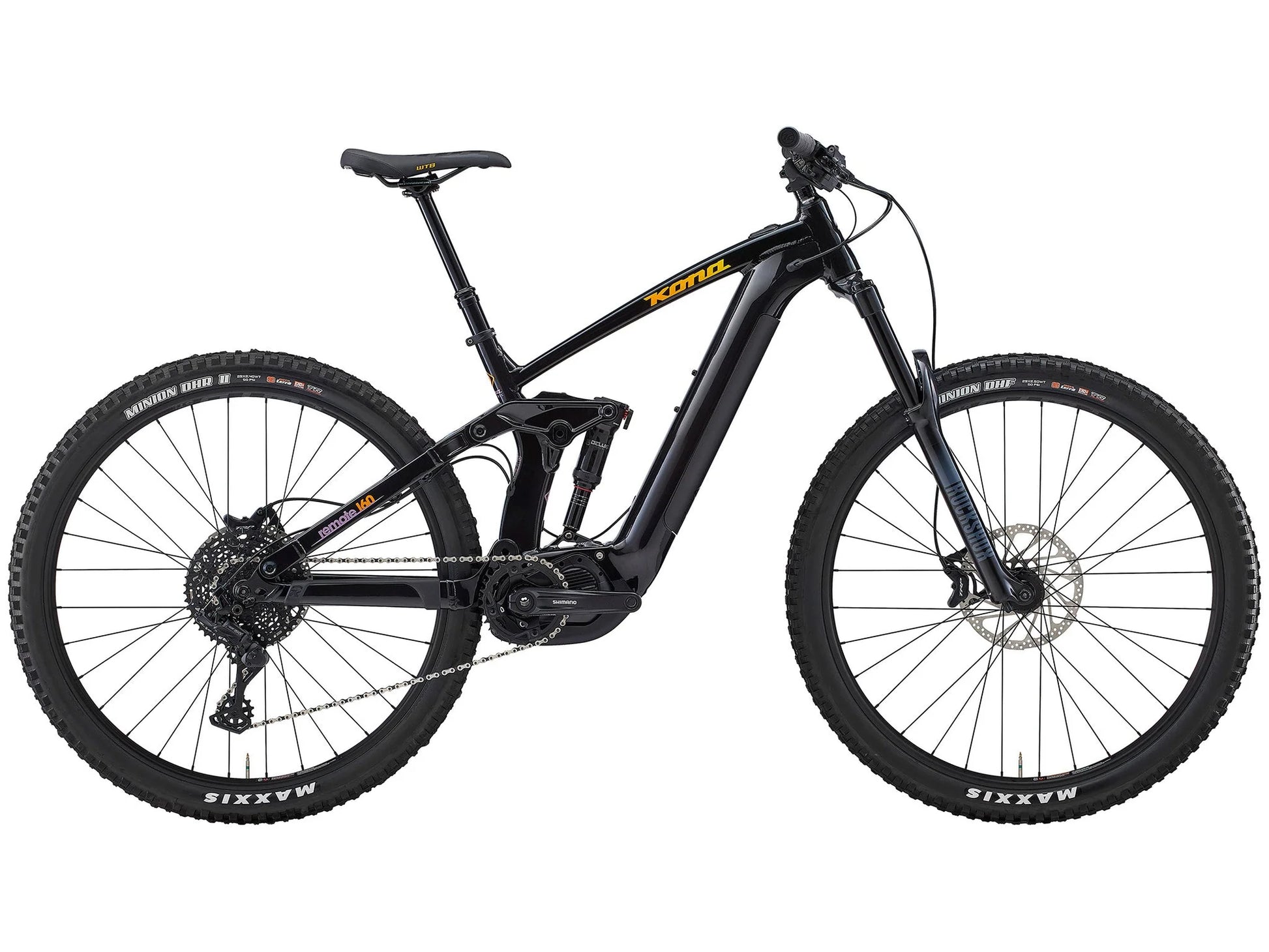

The Remote 160 brings the joy of a longer travel of an e-MTB to the masses. A 29” wheeled ripper, this bike brings all the fun of a 160mm travel e-MTB in a more affordable package. A Shimano motor and battery provide a customizable amount of pedal-assist ensuring you have the exact amount of power you want when you want it. Ultra-powerful hydraulic disc brakes and 200mm rotors front and rear provide controlled stopping even when you’re hauling ass on steeper terrain. No matter what your reasoning, the Remote 160 will have you laughing up and down the trails.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME MATERIAL | Kona 6061 Aluminum Butted 160mm Travel |
| SIZES | S, M, L, XL |

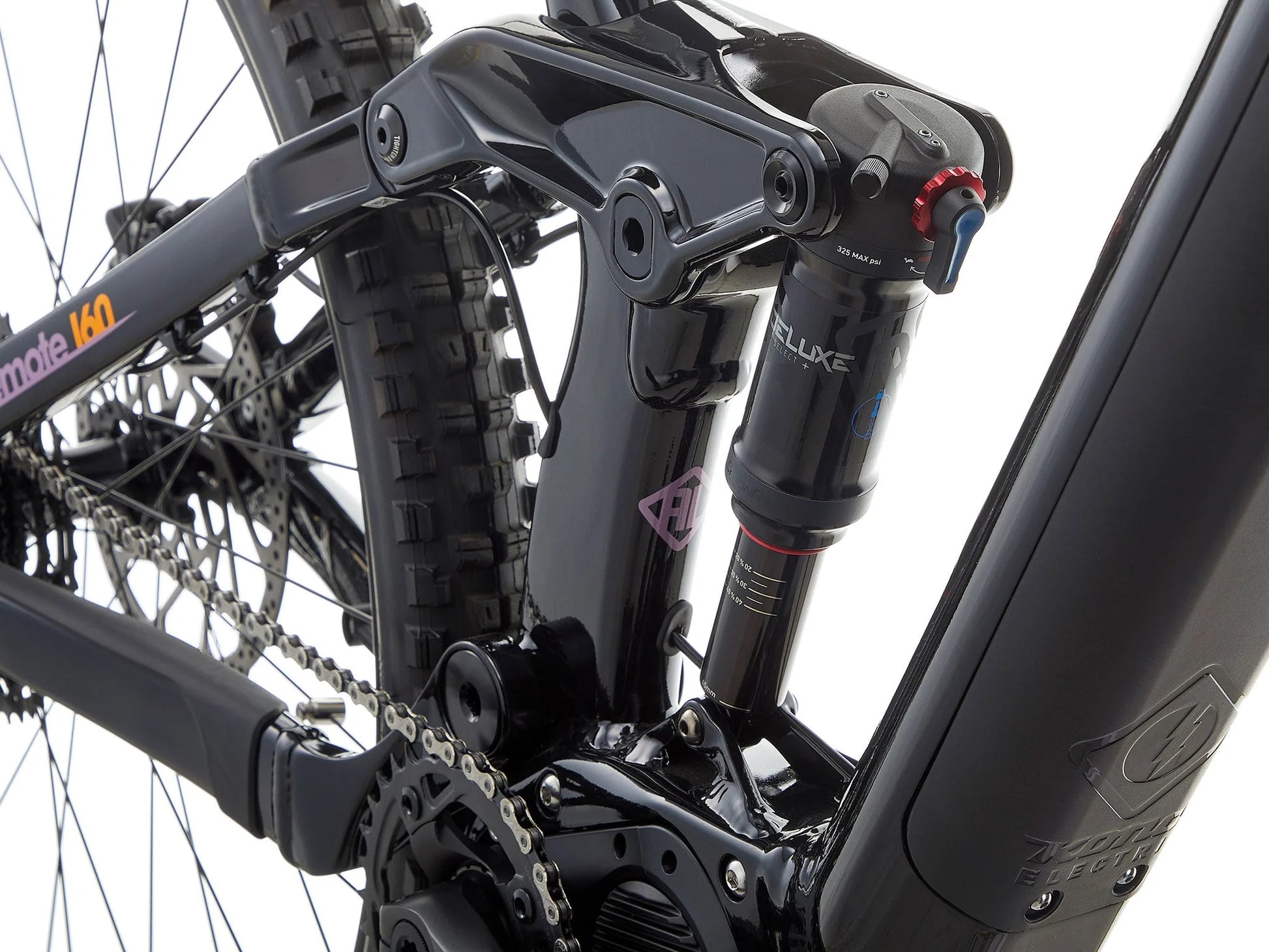

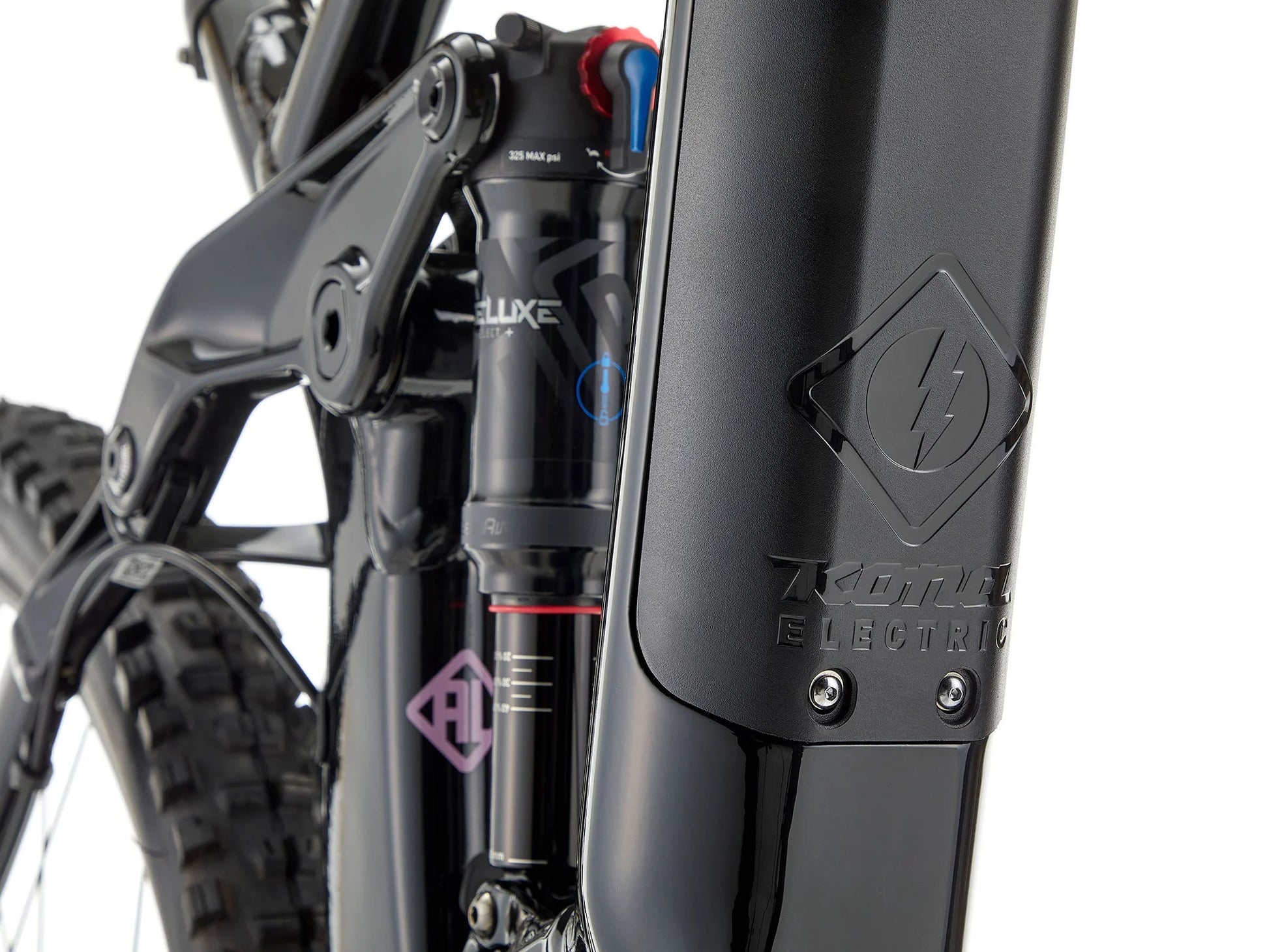

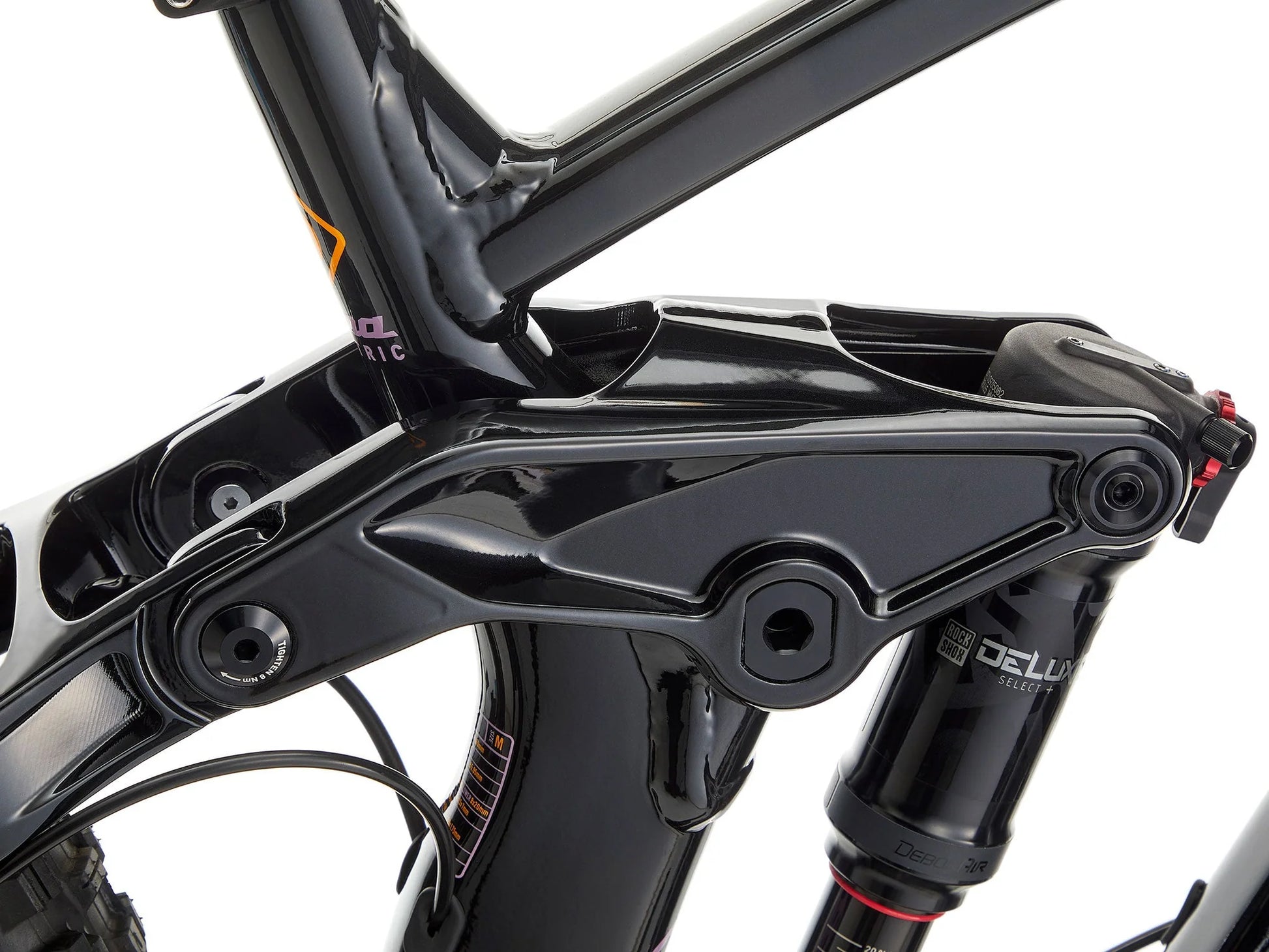

| REAR SHOCK | RockShox Deluxe Select + Trunnion |
| FORK | RockShox 35 Gold RL DebonAir 160mm Tapered 110 Spacing |
| CRANKARMS | Shimano E8000 |
| CHAINRINGS | 34t |
| B/B | n/a |
| PEDALS | n/a |
| CHAIN | KMC X10 |
| CASSETTE | Microshift Advent X 11-48t 10spd |
| CHAINGUIDE | n/a |
| F/D | n/a |
| R/D | Microshift Advent X |
| SHIFTERS | Microshift Advent X |

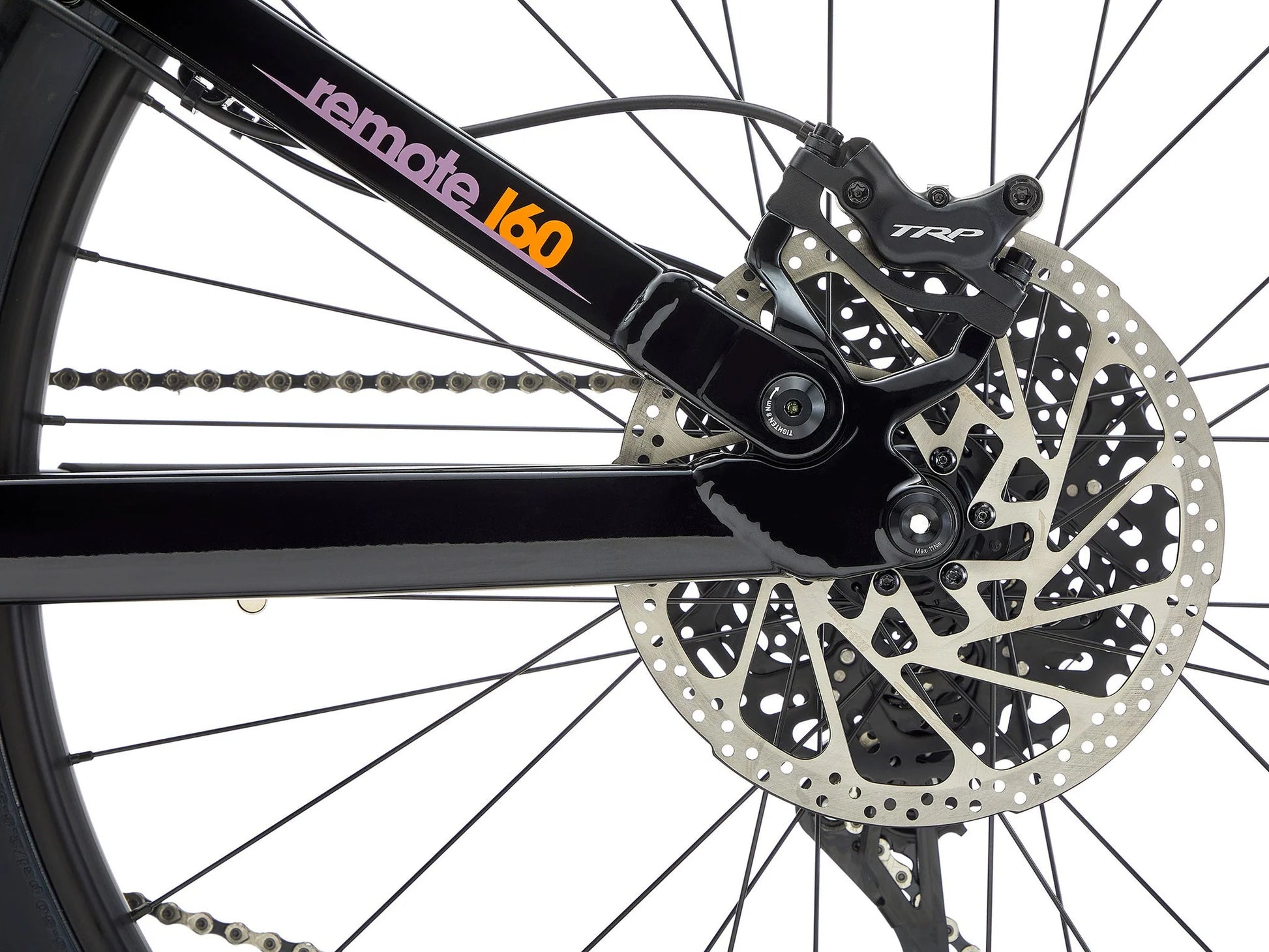

| BRAKE CALIPERS | TRP Slate EVO |
| FRONT BRAKE ROTOR | TRP R203S01E 203mm |
| REAR BRAKE ROTOR | TRP R203S01E 203mm |
| BRAKE LEVERS | TRP Slate EVO |
| HEADSET | FSA No.57E |
| HANDLEBAR | Kona XC/BC 35 |
| STEM | Kona XC/BC 35 |
| SEATPOST | TranzX Dropper Internal 31.6mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip |
| SADDLE | WTB Volt |
| FRONT HUB | Formula 110x15mm |
| REAR HUB | Formula 157x12mm |
| SPOKES | Stainless Black 14g |
| RIMS | WTB ST i30 TCS 2.0 |
| FRONT TIRE | Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT |
| REAR TIRE | Maxxis Minion DHR II EXO+ TR 3C 29x2.5" WT |

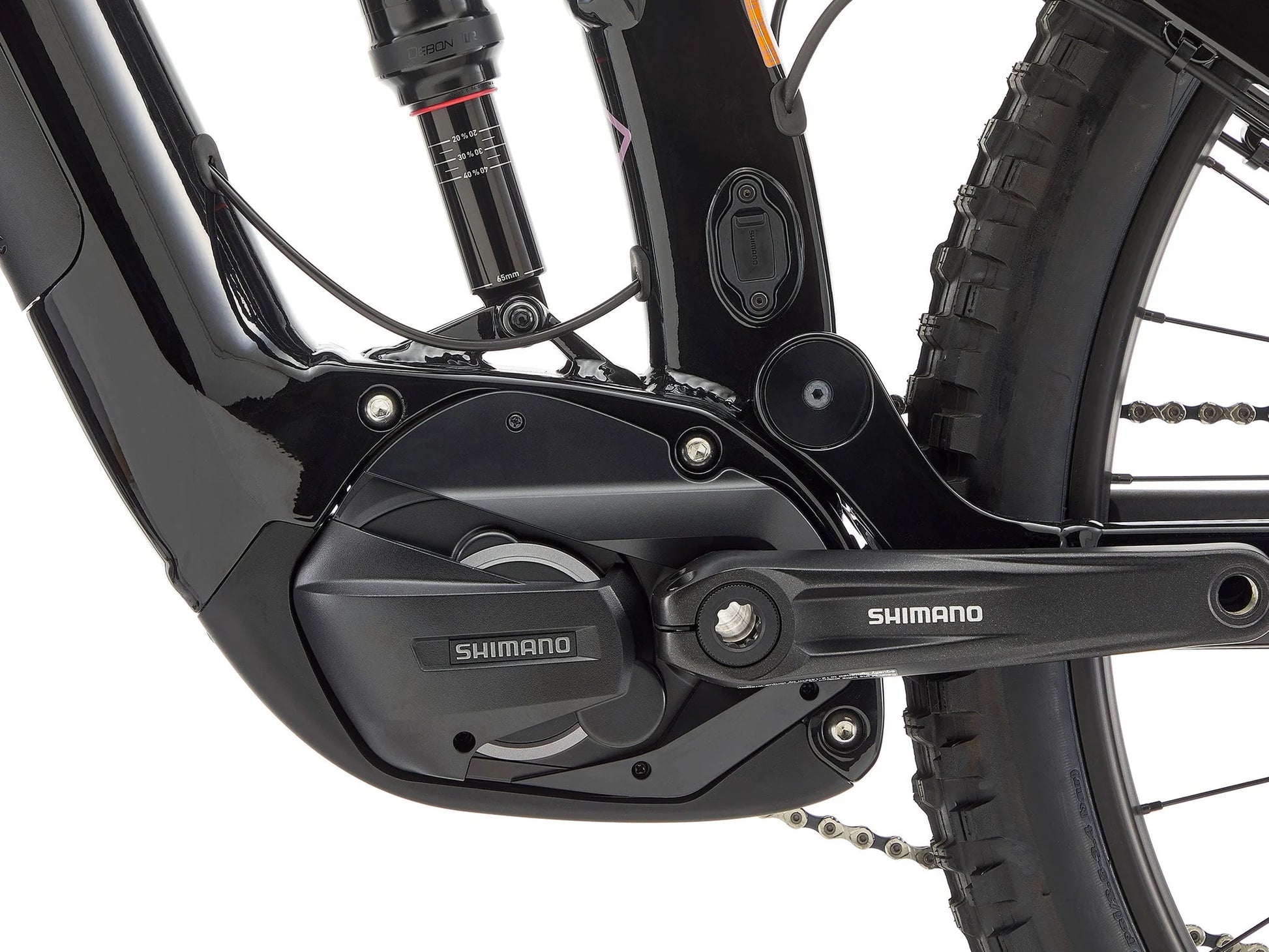

| DRIVEUNIT | Shimano E7000 20MPH |
| BATTERY | Shimano 504Wh |

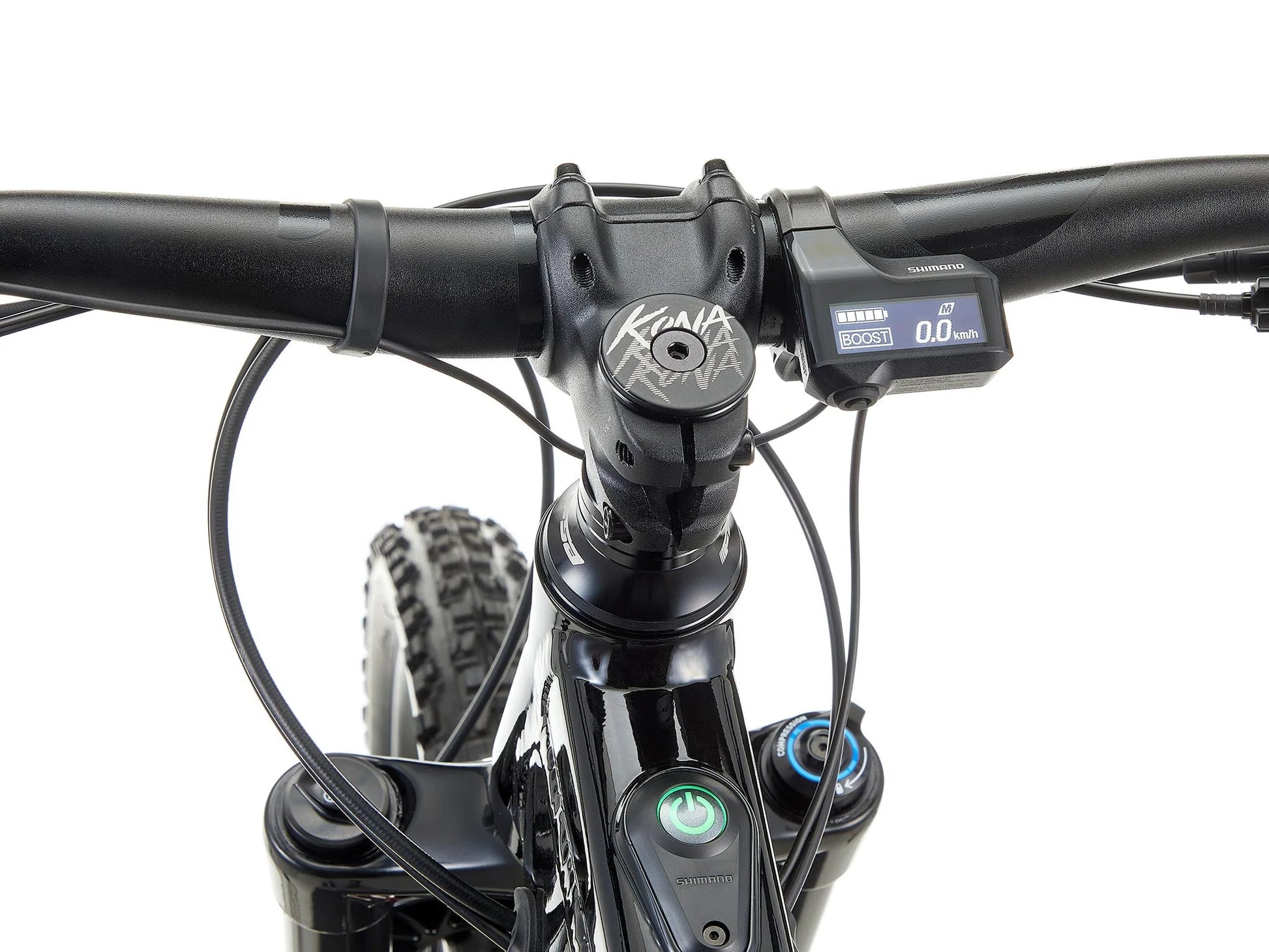

| DISPLAY | Shimano SC-E7000 Display |
| CHARGER | Shimano STEPS 2A |
| PAINT COLOR | Gloss Black w/ Furnace Fade & Purple Decals |
GEOMETRY
| SIZE | S | M | L | XL | |
| 1 | ST LENGTH | 385 | 410 | 450 | 485 |
| 2 | TT LENGTH | 579 | 606 | 635 | 674 |
| 3 | REACH | 425 | 450 | 475 | 510 |
| 4 | STACK | 615 | 620 | 629 | 638 |
| 5 | STANDOVER | 743 | 759 | 755 | 770 |
| 6 | HT ANGLE | 65.0 | 65.0 | 65.0 | 65.0 |
| 7 | HT LENGTH | 115 | 120 | 130 | 140 |
| 8 | ST ANGLE | 75.9 | 75.9 | 75.7 | 75.6 |
| 9 | CS LENGTH | 435 | 435 | 435 | 435 |
| 10 | BB DROP | 15 | 15 | 15 | 15 |
| 11 | BB HEIGHT | 345 | 345 | 345 | 345 |
| 12 | WHEELBASE | 1196 | 1223 | 1252 | 1291 |
| 13 | FRONT CENTER | 761 | 788 | 818 | 857 |
| 14 | FORK LENGTH | 571 | 571 | 571 | 571 |
| 15 | FORK OFFSET | 51 | 51 | 51 | 51 |
SIZING & SELECTION
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC | MTB/XC TRAIL/FAT | ALL MOUNTAIN/ENDURO | SPLICE |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
